Introduction

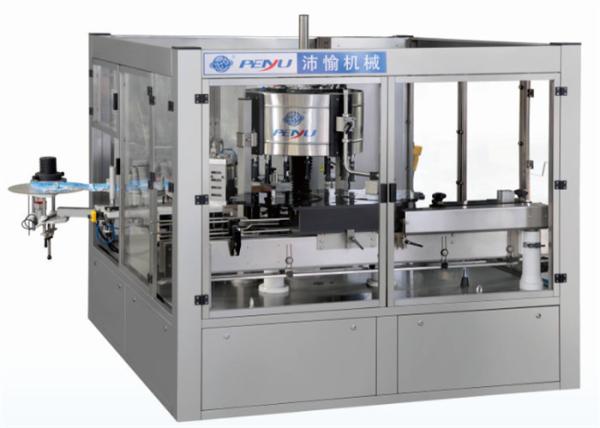

1.This machine is suitable for sticking the continuous rolled
labels,using local gluing methods in small glue consumption and low
running costs.
2.The label station is the core part of the machine,the elaborative
designed label station can convey labels in constant force;the
labels can be corrected an error automatically;labeling speed(the
synthesis speed between the machine revolution speed and rotation
speed of the bottle),is matched internally;if there is no
bottles,the machine will not seed labels;and if there is no
labels;the machine will not glue;labeling will be in normal
condition before and after there placement of the bottles.
3.Automation control is adopted PLC control,with combination
control of servo system,invertor system,temperature control systems
and other necessary control point.
4.Special designed trademarks folder structure can ensure that
trademarks can be always pressed flexibility at labels folder
block.
5.The compensation structure of labels cutting can ensure that
labels are cut in a neatly and timely manner.
Technical parameters
| Model | HR11-15 | HR1G-18 | Compressed air flow | 0.06m3/min | 0.5m3/min |
| Glue Way | /Label | /Label | Compressed air pressure | 0.7-08Mpa | 0.7-0.8Mpa |
| Way of label | /Curl Label | /Curl Label | Suitable for bottle type | Φ50-120,H=160-320 | Φ55-95,H=140-310 |
| Capacity | 24000bottle/hour | 36000bottle/hour | Length of label | 180-310mm | 80-290mm |
| Speed adjustment range | 3000-24000bottle/hour | 3000-36000bottle/hour | Dimensions | 2320*2330*2150(mm) | 2520*240*2350(mm) |
| Main Motor Power | 4Kw/380v/50Hz | 4Kw/380v/50Hz | Weight | 4800kg | 5500kg |
Company Information
New branch-Anhui Peiyu Packing Technology Co.,Ltd. ,located at
NO.2588 East Qingliu Road,Suchu Modern Industrial Park,Chuzhou
Anhui Province
Our Services
Installation and commissioning
We'll send experienced technicians after the equipments arrived
buyer's workshop . Our technicians 'll guide the installation and
commissioning to fulfill designed capability within designed time .
The seller will also offer training including:equipment structure
and maintenance,machine control and operation etc .
After-sales service
The guarantee period will be 1 year after qualifying the equipment
.After guarantee period , we'll provide technical support and
after-sales service for life.
FAQ
1. Q: Why us?
A: We're professional packing machinery manufacturer ,our price &
service is good.
2. Q: Delivery ?
A: About 45 days after order confirmed.
3. Q: Payment ?
A: T/T or L/C .
