6000bph Plastic Bottle Unscrambler Machine Automatic 200ml - 1500ml

Ask Lasest Price
Brand Name :	PEI YU
Model Number :	SPC
Certification :	CE&ISO
Price :	negotiate
Supply Ability :	15 Set/Sets per Month
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

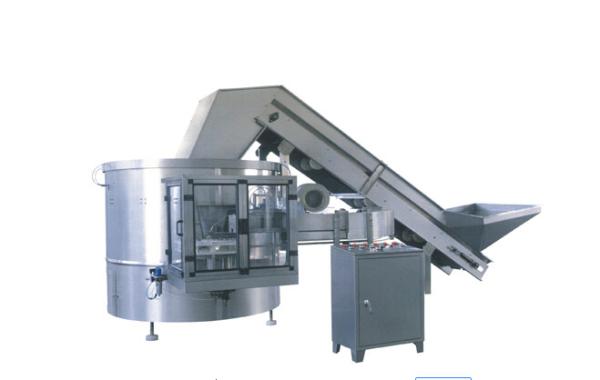

6000bph Plastic Bottle Unscrambler Machine Automatic 200ml - 1500ml

6000bph Plastic Bottle Unscrambler Machine Automatic 200ml - 1500ml

Product Description

Plastic Bottle Full-automatic Bottle Unscrambler are design to meet the the necessicity for the high speed filling plastic bottle line

Bottle unscrambler can perform the process from feeding disordered PET bottle to air conveyor of the filling machine in sequence to meet automatic production requirement of filling machine.

Features of these bottle unscrambler

1. PLC control, full-automatic working
2. Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur.
3. Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency.
4. The bottles are neck locked through the air conveyor so as to avoid Overturn in delivery.
5. Dilapidated bottles will be eliminated by a special device.

6. A lock detector is equipped for alarming; When locked, the machine will Automatically stop.
7. A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles.
8. An oil pump will readily fill up the gears, bearings and the cams
9. Maintenance doors and mould replacement door provided.
10. Machine outer tank and revolving tank and meet the bottle part are all Stainless steel AISI304. Frame part adopts high-grade carbon jointing.

Technical Parameter:

Model	BU-12
Working heads	12 pieces
Speed	6000 bottles per hour on 500ml pet bottle
Required Air pressure	0.7MPA
Air consumption	1.8M³ /min
Applicable plastic bottle size	diameter 50-96mm bottle height: 150-310mm
Drive motot	1.5kw 1pc
Bottle Elevator motor	0.75kw 1pc
Power supply	220~415 3 or single phase available
Dimension	2100mm in diameter, highness: 2300
Weight	About 2800kgs

Company Information

New branch-Anhui Peiyu Packing Technology Co.,Ltd ,located at NO.2588 East Qingliu Road,Suchu Modern Industrial Park,Chuzhou Anhui Province

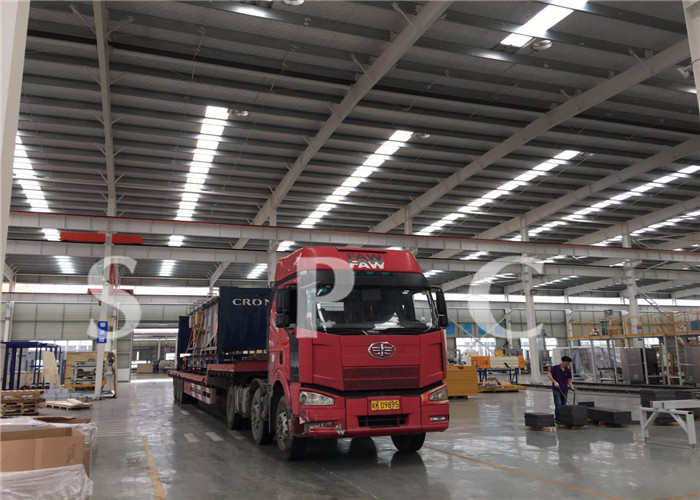

Packaing&Shipping:

Our Services

Installation and commissioning

We'll send experienced technicians after the equipments arrived buyer's workshop . Our technicians 'll guide the installation and commissioning to fulfill designed capability within designed time . The seller will also offer training including:equipment structure and maintenance,machine control and operation etc .

After-sales service

The guarantee period will be 1 year after qualifying the equipment .After guarantee period , we'll provide technical support and after-sales service for life.

FAQ
1. Q: Why us?
A: We're professional packing machinery manufacturer ,our price & service is good.
2. Q: Delivery ?
A: About 45 days after order confirmed.
3. Q: Payment ?
A: T/T or L/C .
