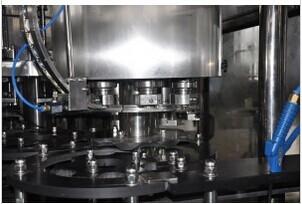

Milk Tea Water Filling Capping Machine Beverage Packaging Equipment
Product Description for hot juice Filling Machine
The juice filling machine
Serial/Model No.: RCGF18186
Type: Hot Processing
Product Type: Subsidiary Food
Ingredient: Beverage
Manufacturing Process: Lightly Processed
The juice filling/water/beverage filling/Filling
Machine/equipments/filler is mainly used in the beverage filling
operations.
Non-Carbonated Filling machine
This filling machine for PET bottle
Integrates the function of rinsing
Filling and capping all together
Non-Carbonated Filling Line
Kewords: Filling machine, filler, beverage filling machine, juice
filling machine, filling machinery
This quality 3-in-1 machine for PET bottle integrates the function
of rinsing, filling and capping together. Based on advanced
technology overseas and designed according to the filling
processing demands of mineral water
Technique parameter:
Model: | XGF14-12-5 | XGF16-16-6 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-12 |
Capacity: | 2000-3000 | 3000-5000 | 5000-8000 | 8000-12000 | 12000-15000 | 15000-18000 |
Bottle shape: | roud or square | |||||
PET bottle: (mm) | (Bottle Diameter): φ50-.φ110mm (Height): 150-340mm | |||||
Cap: | PE srew cap | |||||
Filling precision: | ≤±5mm | |||||
Filling pressure:(Mpa) | 0.15-0.35 | |||||
Rinsing pressure:(Mpa) | 0.2-0.2 | |||||
Motor power: (kw) | 3 | 3 | 4.5 | 5.5 | 6.5 | 7.5 |
Overall size:(mm) | 1850*1600 | 2100*1800 | 2400*2150 | 3800*2950 | 3800*2800*2650 | 4000*3300*3400 |
Weight: (kg) | 2500 | 2800 | 3500 | 4500 | 5500 | 7000 |
![]() |
